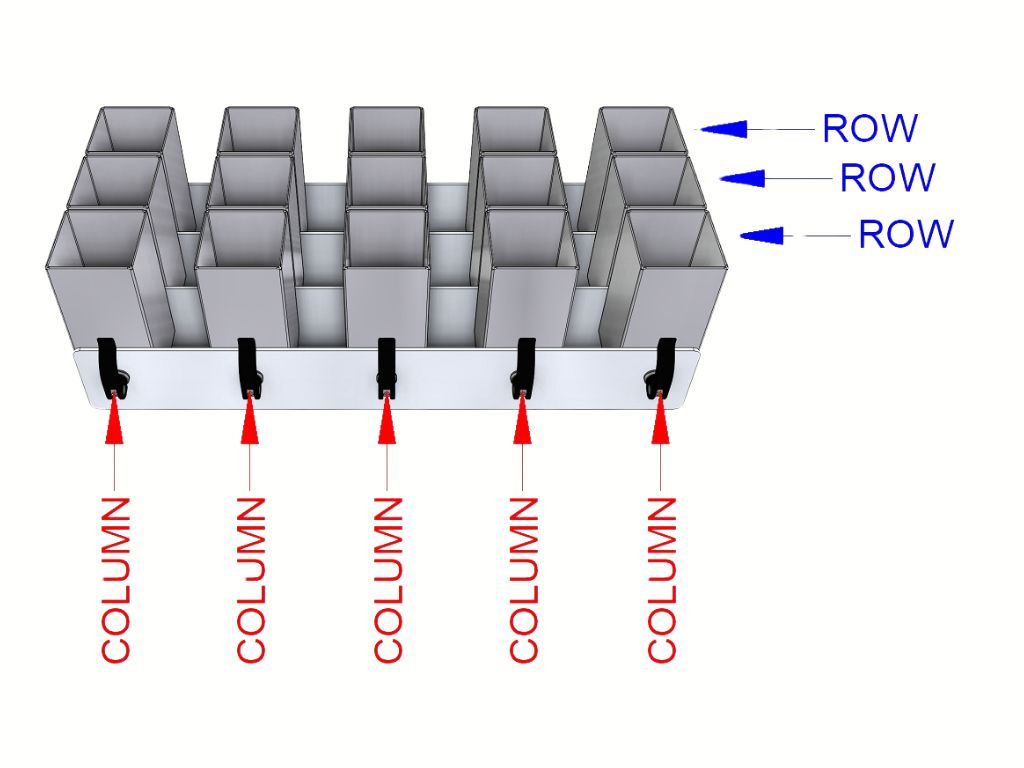

How Columns and Rows Work
MinCom™ racks are defined by columns and rows, which together determine how many cam lever assemblies are required.
Columns
-
The X-number of your rack (X4, X5, X6, X7) indicates the number of columns
-
Each column requires one cam lever assembly
Rows
-
Rows determine the front-to-back depth of the rack
-
The number of rows affects the length of the all-thread included in the cam lever kit
-
All other components remain the same
Column & Row Limits by MinCom™ Series
Please select the row count that matches your rack configuration:
-
MinCom™ X4 — 4 columns, 3–6 rows
-
MinCom™ X5 — 5 columns, 3–7 rows
-
MinCom™ X6 — 6 columns, 3–6 rows
-
MinCom™ X7 — 7 columns, 3–5 rows
Each cam lever kit includes the correct quantity of levers for the selected series and the proper all-thread length for the chosen row count.
Not Sure What You Have?
If you’re unsure of your rack configuration:
-
Count the number of vertical columns to determine the series
-
Count the number of rows front-to-back to select the correct option
If you still have questions, contact CraigCo and we’ll help you identify the correct kit.
